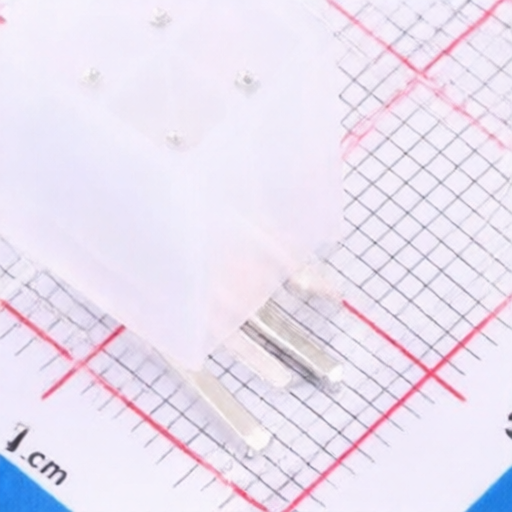

HanElectricity 9537WR-202P
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
9537WR-202P
Package:
Through Hole,Right Angle,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 4.2mm
Description:
Connector Header 4.2mm Pitch Right Angle
Datasheet:
HanElectricity 9537WR-202P
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=4.2mm
Y-Width of Bottom Edge on Board:
13mm
Pins Structure:
1x2P
Reference Series:
Mini-Fit(MX 4.2)
Contact Plating:
-
Contact Material:
-;PA66
Operating Temperature:
-25℃~+85℃
Pitch:
4.2mm
Voltage Rating (Max):
300V
Number of PINs Per Row:
-
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
5.4mm
Z-Height of the Board:
9.7mm
Row Spacing:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HanElectricity
1295 Products
HanElectricity is a consumer electrical connector manufacturer based in China, boasting vertically integrated production capabilities from raw materials to assembly. The company primarily produces electrical connectors.
