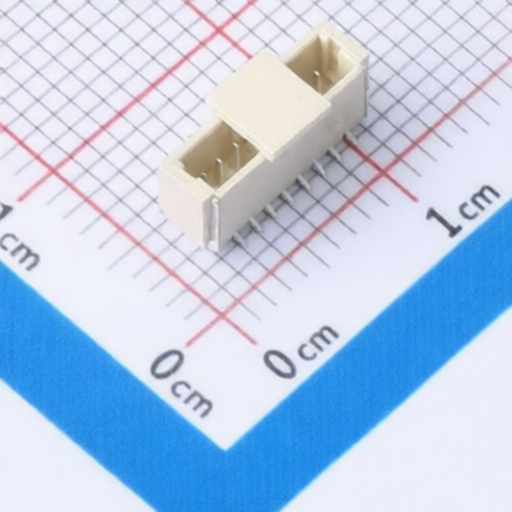

HanElectricity 1002WVS-08EP
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
1002WVS-08EP
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 1mm
Description:
Connector Header 1mm Pitch Surface Mount,Vertical
Datasheet:
HanElectricity 1002WVS-08EP
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
3.15mm
Flame Retardant Rating:
UL94V-0
Reference Series:
SH
Pins Structure:
1x8P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;LCP
Pitch:
1mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
8
Number of Rows:
1
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
4.4mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HanElectricity
1295 Products
HanElectricity is a consumer electrical connector manufacturer based in China, boasting vertically integrated production capabilities from raw materials to assembly. The company primarily produces electrical connectors.
