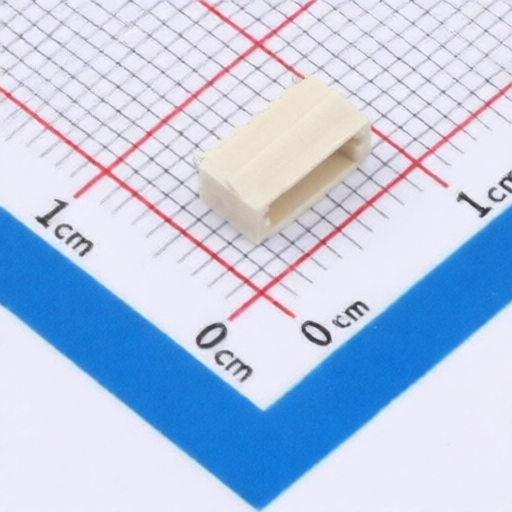

Hanbo Electronic WAFER-NH100W-5A
Manufacturer:
Hanbo Electronic
Asian Brands
Mfr. Part #:
WAFER-NH100W-5A
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Description:
1x5P -25℃~+85℃ 1mm 30V 5 1 Surface Mount, Right Angle SMD,P=1mm,Surface Mount,Right Angle Headers, Male Pins RoHS
Datasheet:
Hanbo Electronic WAFER-NH100W-5A
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
-
Reference Series:
-
Pins Structure:
1x5P
Contact Plating:
-
Contact Material:
Brass;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
1mm
Voltage Rating (Max):
30V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
-
Row Spacing:
-
Z-Height of the Board:
-
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hanbo Electronic
2080 Products
Dongguan Hanbo Electronic Technology Co., Ltd
.
(hereinafter referred to as "Hanbo Electronic") is a global manufacturer of standard parts and high-quality connector components. The company is based in the field of Card Reader connectors. Its main products include SD card holders, TF card holders, SIM card holders, all-in-one card holders, WAFER pin holders, touch switches, USB 2.0 connectors, USB 3.0 connectors, USB TYPE C 3.1 connectors and other reliable connectors and customized parts. The products are used in home appliances, mobile phones, digital cameras, Internet phones, POS machines, automobiles, industry, the Internet of Things, wearable devices, medical treatment, telecommunications, consumer products, aerospace and POS terminal instrument control panels, etc. Hanbo Electronic fully implements the ISO9001 environmental management system and the safety production standardization system, and runs the ERP enterprise resource planning management system throughout the process to
