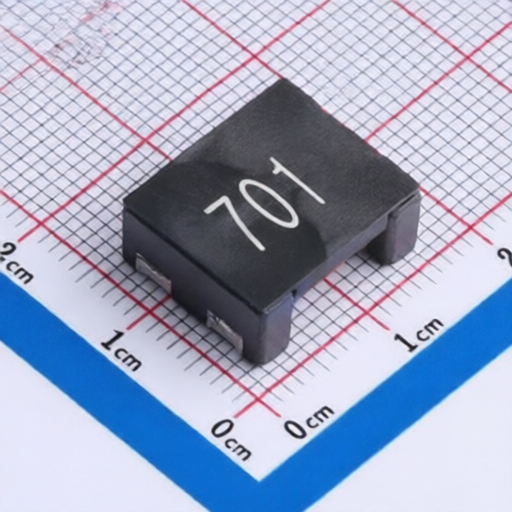

FANGCHENG FC-LCM1513-701
Manufacturer:
FANGCHENG
Asian Brands
Mfr. Part #:
FC-LCM1513-701
Package:
SMD-4P,15.5x13mm
Customer #:
Key Attributes:
CMC 10A 2LN 700Ω SMD
Description:
2Line Common Mode Choke Surface Mount-4P 15.5x13mm 700Ω@100MHz 10A DCR 7mΩ
Datasheet:
FANGCHENG FC-LCM1513-701
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,15.5x13mm
Inductance @ Frequency:
-
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-
DC Resistance(DCR):
7mΩ
Number of Lines:
2
Voltage Rating - DC:
125V
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 400 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
FANGCHENG
319 Products
Fangcheng Electronics (Dongguan) Co., Ltd.
, (hereinafter referred to as "FC" or "FANGCHENG") established in 2020, is a high-tech enterprise specializing in the design, manufacture, and sale of inductors, transformers, current transformers, planar transformers, and other magnetic components. The company boasts a team of senior engineers and mold automation design professionals, equipped with advanced experimental development and product testing equipment, achieving a leading technical level domestically. The company's products include various types of inductor devices such as SMD power inductors, common-mode inductance, plug-in inductors. These products are widely applied in new energy vehicles, communication equipment, industrial control, rail transit, military and medical fields, and aviation power supplies. FC adheres to the principles of quality assurance and continual improvement, aiming to manufacture excellent products and achieve customer satisfaction. The company has establish
