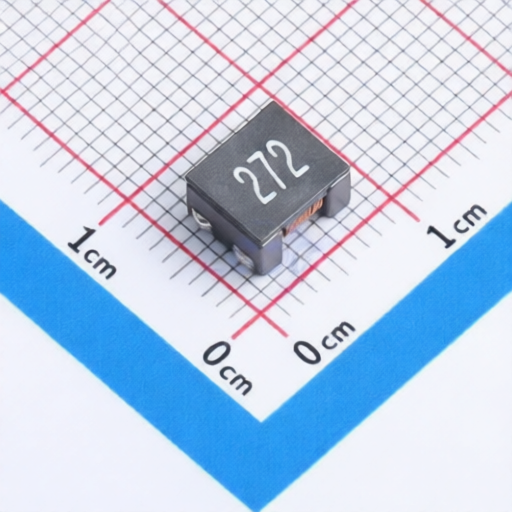

FANGCHENG LCM7060-272
Manufacturer:
FANGCHENG
Asian Brands
Mfr. Part #:
LCM7060-272
Package:
SMD-4P,7x6mm
Customer #:
Key Attributes:
CMC 1A 2LN 2.7kΩ SMD
Description:
2Line Common Mode Choke Surface Mount-4P 7x6mm 2.7kΩ@100MHz 1A DCR 65mΩ
Datasheet:
FANGCHENG LCM7060-272
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,7x6mm
Inductance @ Frequency:
-
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-
DC Resistance(DCR):
65mΩ
Voltage Rating - DC:
-
Number of Lines:
2
Voltage Withstand:
81V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
