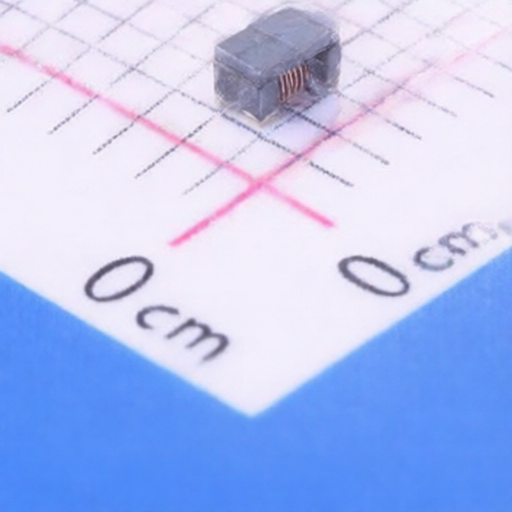

EMTEK CMF2012H4-121-2P-T
Manufacturer:
EMTEK
Asian Brands
Mfr. Part #:
CMF2012H4-121-2P-T
Package:
SMD-4P,2x1.2mm
Customer #:
Key Attributes:
CMC 300mA 2LN 120Ω SMD
Description:
2Line Common Mode Choke Surface Mount 2x1.2x1.2mm 120Ω@100MHz 300mA DCR 250mΩ
Datasheet:
EMTEK CMF2012H4-121-2P-T
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,2x1.2mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+105℃
DC Resistance(DCR):
250mΩ
Voltage Rating - DC:
20V
Number of Lines:
2
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
