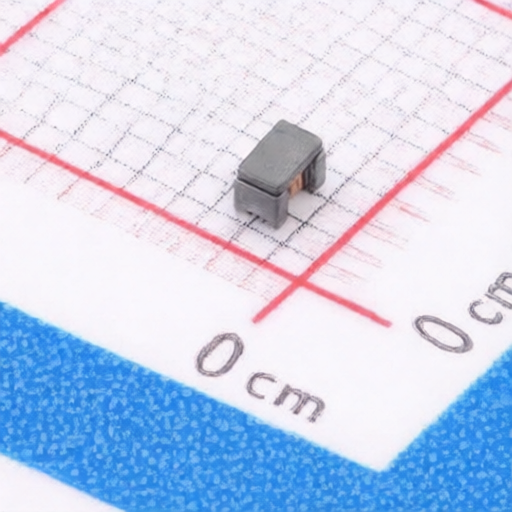

EMTEK CMF2012F-121M-2P-T
Manufacturer:
EMTEK
Asian Brands
Mfr. Part #:
CMF2012F-121M-2P-T
Package:
SMD-4P,2x1.2mm
Customer #:
Key Attributes:
CMC 370mA 2LN 120Ω SMD
Description:
2Line Common Mode Choke Surface Mount-4P 2x1.2mm 120Ω@100MHz 370mA DCR 300mΩ
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,2x1.2mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+105℃
DC Resistance(DCR):
300mΩ
Voltage Rating - DC:
50V
Number of Lines:
2
Voltage Withstand:
125V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
EMTEK
237 Products
EMTEK Co., LTD Taiwan has launched and mass produced several kinds of tiny SMD power inductors, RF inductors and common mode choke to meet the portable, wireless device needs.
In the new generation of wireless mini PCI and multifunctional mobile devices, EMTEK has the more advanced inductors with excellent function to achieve the higher power conversion efficiency. The PIN2510 has been launched and mass produced for over one year with 2.5*2.5*1.0mm and outstanding IDC/ Irms to resolve power management issues of the new applications need, such as GPS, mobile phone, bluetooth, USB power device, and so on. The related combo including LCD series as well as PIN2010 is your best solution for the needs of downsizing and thinning mobile devices nowadays.
