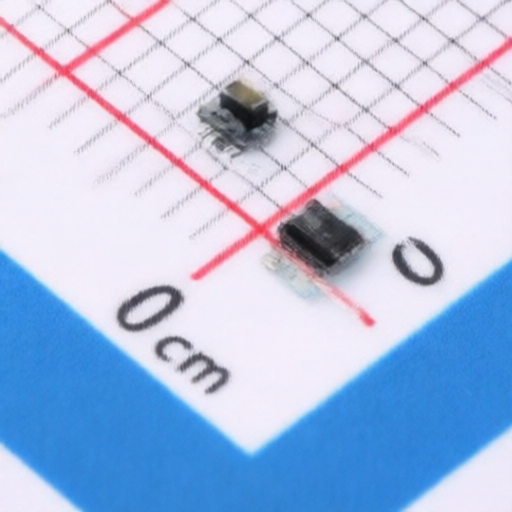

ElecSuper 2N7002KDW
Manufacturer:
ElecSuper
Asian Brands
Mfr. Part #:
2N7002KDW
Package:
SOT-363
Customer #:
Key Attributes:
MOSFET N-CH ARR 60V 300mA SOT-363
Description:
N-Channel Array 60V 300mA 350mW Surface Mount SOT-363
Datasheet:
ElecSuper 2N7002KDW
Products Specifications
Manufacturer:
Package:
SOT-363
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
300mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
1.85Ω@10V;2.05Ω@4.5V
Gate Threshold Voltage (Vgs(th)):
1.6V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
4pF
Number:
2 N-Channel
Output Capacitance(Coss):
11pF
Input Capacitance(Ciss):
28pF
Pd - Power Dissipation:
350mW
Gate Charge(Qg):
1.8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
