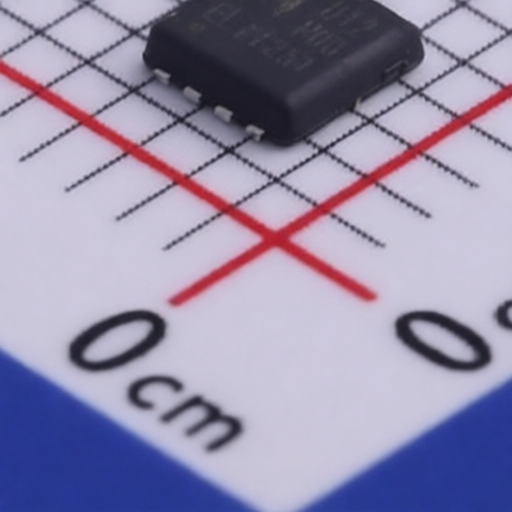

EMC EMB12P03V
Manufacturer:
EMC
Asian Brands
Mfr. Part #:
EMB12P03V
Package:
EDFN-8(3x3)
Customer #:
Key Attributes:
MOSFET P-CH 30V 21A EDFN-8(3x3)
Description:
P-Channel 30V 21A 2.5W EDFN-8(3x3)
Datasheet:
EMC EMB12P03V
Products Specifications
Manufacturer:
Package:
EDFN-8(3x3)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
21A
Operating Temperature -:
-55℃~+150℃
RDS(on):
12mΩ@10V,13A
Gate Threshold Voltage (Vgs(th)):
1V
Reverse Transfer Capacitance (Crss@Vds):
326pF@15V
Number:
1 P-Channel
Input Capacitance(Ciss):
2.363nF@15V
Pd - Power Dissipation:
2.5W
Gate Charge(Qg):
45nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
EMC
7 Products
Excelliance MOS Co., Ltd. (EMC), founded in 2008, is a power device and IC design company, specializes in power semiconductor process development, high efficiency power device, IC and system design by the capability of vertical integration.
The manager and technical teams of EMC have over 15 years experience and had demonstrated their capability successfully. The developed devices can be applied widely to the power system of electronic products, such as, personal computer, notebook, pad, monitor, TV, LED lighting, switching power and other consumer electronics.
