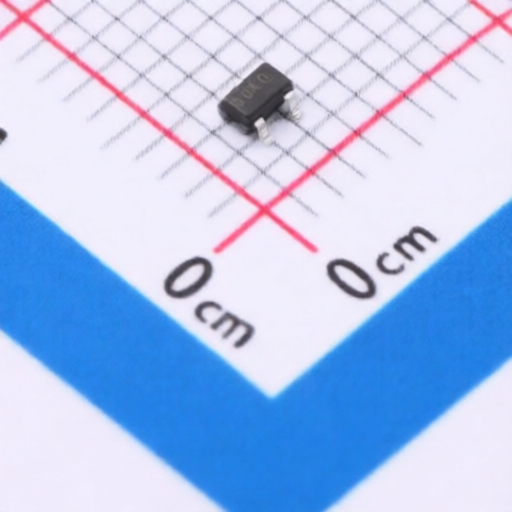

ElecSuper PJC138K-ES
Manufacturer:
ElecSuper
Asian Brands
Mfr. Part #:
PJC138K-ES
Package:
SOT-323
Customer #:
Key Attributes:
MOSFET N-CH 60V 360mA SOT-323
Description:
N-Channel 60V 360mA 236mW Surface Mount SOT-323
Datasheet:
ElecSuper PJC138K-ES
Products Specifications
Manufacturer:
Package:
SOT-323
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
360mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
1.5Ω@10V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
2.2pF
Number:
1 N-channel
Output Capacitance(Coss):
9.7pF
Input Capacitance(Ciss):
25pF
Pd - Power Dissipation:
236mW
Gate Charge(Qg):
650pC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
