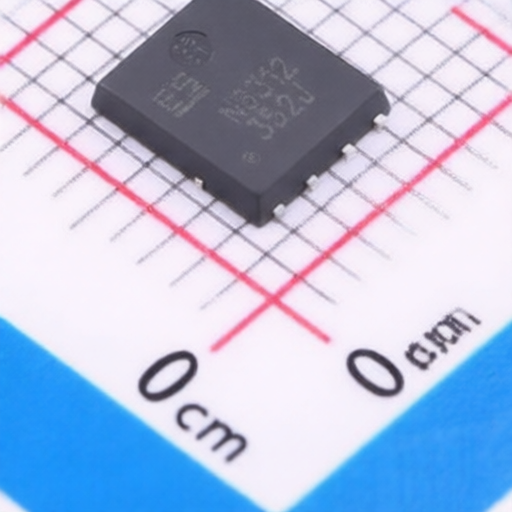

ElecSuper AON6312-ES
Manufacturer:
ElecSuper
Asian Brands
Mfr. Part #:
AON6312-ES
Package:
PDFN5x6-8L
Customer #:
Key Attributes:
MOSFET N-CH 30V 123A PDFN5x6-8L
Description:
N-Channel 30V 123A 50W Surface Mount PDFN5x6-8L
Datasheet:
ElecSuper AON6312-ES
Products Specifications
Manufacturer:
Package:
PDFN5x6-8L
Pd - Power Dissipation:
50W
Configuration:
-
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
123A
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
1.7mΩ@10V;2.6mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.75V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
103pF
Number:
1 N-channel
Output Capacitance(Coss):
882pF
Input Capacitance(Ciss):
3.1nF
Gate Charge(Qg):
43nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
