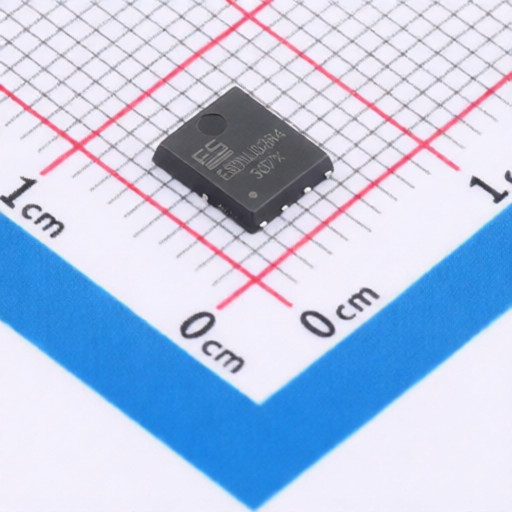

ElecSuper ESDNJ03R4
Manufacturer:
ElecSuper
Asian Brands
Mfr. Part #:
ESDNJ03R4
Package:
PDFN-8L(5x6)
Customer #:
Key Attributes:
MOSFET N-CH 30V 41A PDFN-8L(5x6)
Description:
N-Channel 30V 41A 20.8W Surface Mount PDFN-8L(5x6)
Datasheet:
ElecSuper ESDNJ03R4
Products Specifications
Manufacturer:
Package:
PDFN-8L(5x6)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
41A
RDS(on):
5mΩ@10V;6.5mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.7V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
242pF
Output Capacitance(Coss):
275pF
Pd - Power Dissipation:
20.8W
Input Capacitance(Ciss):
1.983nF
Gate Charge(Qg):
48nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ElecSuper
1668 Products
Hunan Jingxin Microelectronics Technology Co., Ltd.
(hereinafter referred to as "ElecSuper") was established in 2015, is a high-tech enterprise specializing in the design, development, and production of high-reliability devices and chips. The company focuses on providing full-chip integrated high-performance ESD/TVS design services and discrete devices such as ESD/TVS, MOS, and other components. With a team of experienced R&D professionals, many of whom are returned overseas scholars, ElecSuper has achieved significant technological advancements and holds numerous intellectual property rights, including invention patents and integrated circuit layout registrations. The company has been recognized as a national high-tech enterprise and has received several provincial and municipal science and technology awards. Its products are widely used in automotive electronics, industrial control, and consumer electronics.
