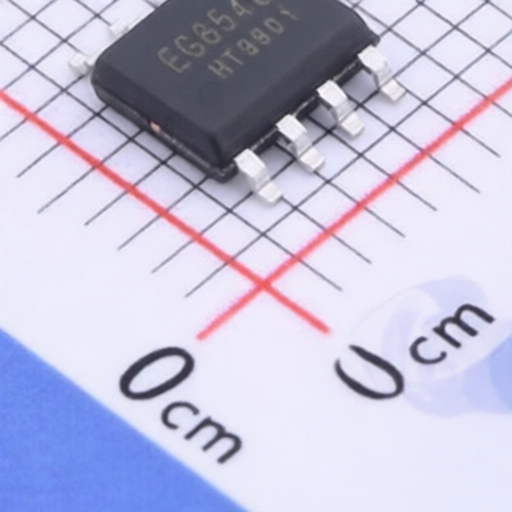

EG Micro EG8546
Manufacturer:
EG Micro
Asian Brands
Mfr. Part #:
EG8546
Package:
SOP-8
Customer #:
Key Attributes:
High-speed CMOS rail-to-rail operational amplifier
Description:
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8
Datasheet:
EG Micro EG8546
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
1mV
Ib - Input Bias Current:
1pA
Slew Rate:
3.7V/us
Quiescent Current(Iq):
860uA
Common Mode Rejection Ratio(CMRR):
80dB
Output Current:
50mA
Operating Temperature:
-40℃~+125℃
Voltage - Supply:
2.5V~5.5V
Gain Bandwidth Product:
6MHz
Input Offset Voltage Drift(Vos TC):
2.5uV/℃
Maximum Power Supply Range (Vdd-Vss):
5.5V
Number of Channels:
2
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
1pA
Noise density(eN):
13nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
