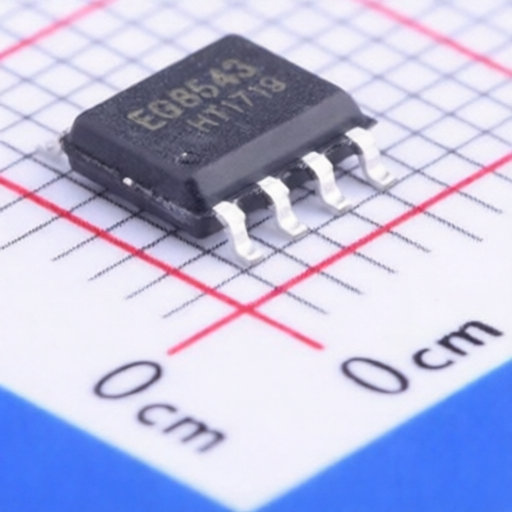

EG Micro EG8543
Manufacturer:
EG Micro
Asian Brands
Mfr. Part #:
EG8543
Package:
SOP-8-150mil
Customer #:
Key Attributes:
High-speed CMOS rail-to-rail operational amplifier chip
Description:
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8-150mil
Datasheet:
EG Micro EG8543
Products Specifications
Manufacturer:
Package:
SOP-8-150mil
Vos - Input Offset Voltage:
1mV
Ib - Input Bias Current:
4pA
Slew Rate:
5V/us
Common Mode Rejection Ratio(CMRR):
48dB
Quiescent Current(Iq):
200uA
Output Current:
30mA
Operating Temperature:
-40℃~+125℃
Voltage - Supply:
2.7V~5.5V
Gain Bandwidth Product:
1MHz
Input Offset Voltage Drift(Vos TC):
4uV/℃
Maximum Power Supply Range (Vdd-Vss):
5.5V
Number of Channels:
2
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
0.1pA
Noise density(eN):
38nV/√Hz@10kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 2 |
| Multiple | 2 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
EG Micro
152 Products
EGmicro Co., Ltd.
(hereinafter referred to as "EG micro") is a specialized integrated circuit design company focusing on the design, production, sales, and service of chips for inverter power supplies, power management, motor control, and MOS drivers. The company boasts a professional IC design team and an experienced R&D team for inverter power supplies and power management, holding proprietary core technologies. Adhering to the business philosophy of "customer-centric, market-oriented, creating more value for society," and embracing a corporate culture of "people-oriented, innovation-driven, teamwork, and integrity," EGmicro has, after years of R&D accumulation, become a leading domestic provider of solutions for inverter power supplies, industrial power supplies, and brushless motor control. Notably, in the field of inverter power supplies, the company offers a comprehensive set of industry-leading solutions. Looking ahead, EGmicro aims to become a top-tier IC design company and an
