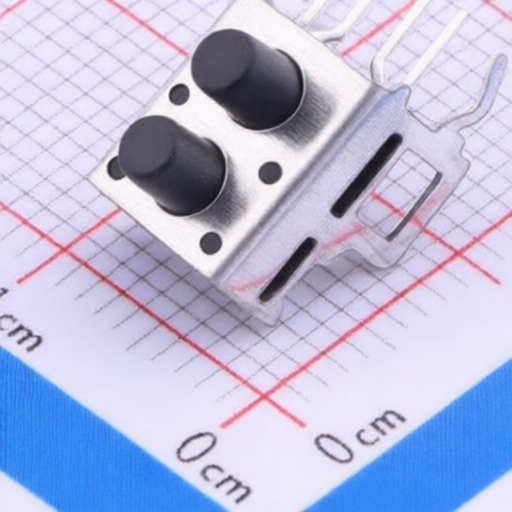

E-Switch TL2243
Manufacturer:
E-Switch
Mfr. Part #:
TL2243
Package:
Through Hole
Customer #:
Key Attributes:
SWITCH TACTILE SPST 180gf TH R/A
Description:
Tactile Switch SPST 180gf 3.8mm PC Pin Through Hole, Right Angle
Datasheet:
E-Switch TL2243
Products Specifications
Category:
Manufacturer:
Package:
Through Hole
Voltage Rating:
12V
Switching Life:
30,000 cycles
Operating Temperature:
-20℃~+70℃
Installation Method:
Right Angle
PressForce:
1.8N
Termination Style:
PC Pin
Actuator Style:
Round Button
With Lamp:
-
Circuit:
SPST
Height:
3.8mm
Contact Current:
50mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 600 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536500090 |
| USHTS | 8536507000 |
| TARIC | 8536500300 |
| CAHTS | 8536501000 |
| BRHTS | 85365090 |
| INHTS | 85365090 |
| MXHTS | 8536.50.09 |
