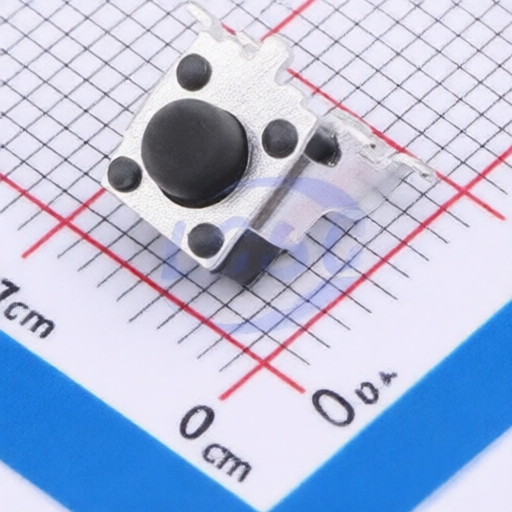

E-Switch TL3336AF160Q
Manufacturer:
E-Switch
Mfr. Part #:
TL3336AF160Q
Package:
SMD,7.1x7mm
Customer #:
Key Attributes:
SWITCH TACTILE SPST 160gf SMD R/A
Description:
Tactile Switch SPST 160gf SMD (SMT) Tab 7.1mm x 7mm Surface Mount, Right Angle
Datasheet:
E-Switch TL3336AF160Q
Products Specifications
Category:
Manufacturer:
Package:
SMD,7.1x7mm
Voltage Rating:
12V
Switching Life:
100,000 Cycles
Operating Temperature:
-20℃~+70℃
Width:
7mm
Installation Method:
Surface Mount, Right Angle
PressForce:
1.6N
Termination Style:
SMD(SMT) Tab
Actuator Style:
Round Button
Circuit:
SPST
Length:
7.1mm
Actuator/Cap Color:
Black
IP Rating:
IP67
Contact Current:
50mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 650 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536500090 |
| USHTS | 8536507000 |
| TARIC | 8536500300 |
| CAHTS | 8536501000 |
| BRHTS | 85365090 |
| INHTS | 85365090 |
| MXHTS | 8536.50.09 |
