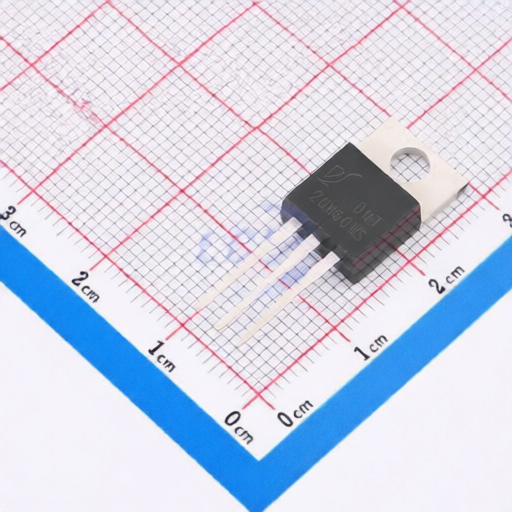

DIYI Elec Tech DMT20N60WS
Manufacturer:
DIYI Elec Tech
Asian Brands
Mfr. Part #:
DMT20N60WS
Package:
TO-220
Customer #:
Key Attributes:
MOSFET N-CH 600V 14A TO-220
Description:
N-Channel 600V 14A Through Hole TO-220
Datasheet:
DIYI Elec Tech DMT20N60WS
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
600V
Current - Continuous Drain(Id):
14A
RDS(on):
190mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
-
Number:
1 N-channel
Input Capacitance(Ciss):
1.093nF@50V
Gate Charge(Qg):
25.3nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
