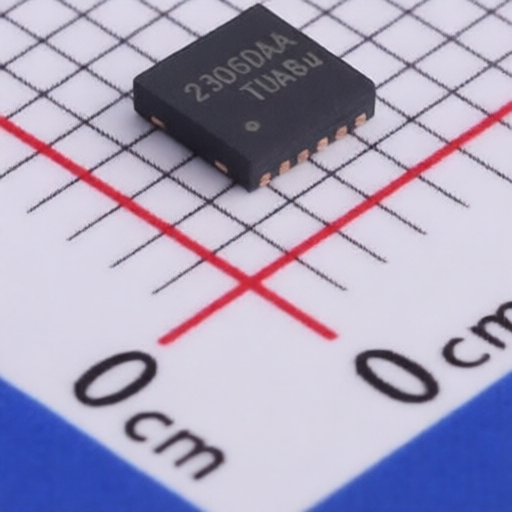

DIODES PAM2306DYPAA
Manufacturer:
DIODES
Mfr. Part #:
PAM2306DYPAA
Package:
WDFN-12L-EP(3x3)
Customer #:
Key Attributes:
Dual High-Efficiency PWM Step-Down DC-DC Converter
Description:
1.5MHz Buck 1A WDFN-12L-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
DIODES PAM2306DYPAA
Products Specifications
Category:
Manufacturer:
Package:
WDFN-12L-EP(3x3)
Operating Temperature:
-40℃~+125℃
Frequency - Switching:
1.5MHz
Number of Outputs:
2
Function:
Buck
Output Type:
-
Topology:
Buck
Operating Voltage:
2.5V~5.5V
Switch tube (built-in/external):
Built-in
Output Current:
1A
Output Voltage:
-
Quiescent Current:
40uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
