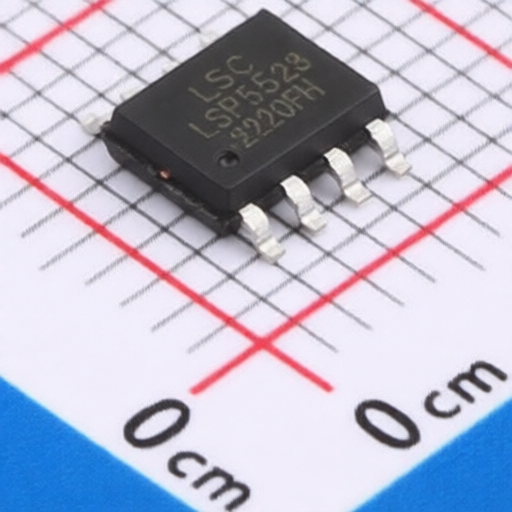

DIODES LSP5523-R8A
Manufacturer:
DIODES
Mfr. Part #:
LSP5523-R8A
Package:
SOP-8-EP
Customer #:
Key Attributes:
3A 27V Synchronous Buck Converter
Description:
340kHz Buck Adjustable 3A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
DIODES LSP5523-R8A
Products Specifications
Category:
Manufacturer:
Package:
SOP-8-EP
Operating Temperature:
-20℃~+125℃
Frequency - Switching:
340kHz
Function:
Buck
Number of Outputs:
1
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
4.5V~27V
Switch tube (built-in/external):
Built-in
Output Voltage:
-
Output Current:
3A
Quiescent Current:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
