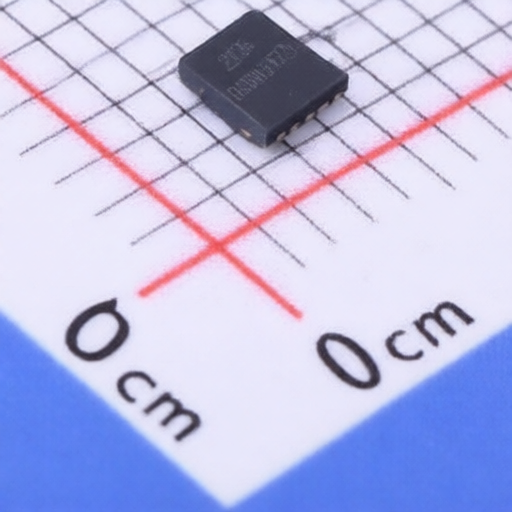

DIODES DGD05473FNQ-7
Manufacturer:
DIODES
Mfr. Part #:
DGD05473FNQ-7
Package:
DFN-10-EP(3x3)
Customer #:
Key Attributes:
High Frequency High-Side and Low-Side Gate Driver
Description:
DFN-10-EP(3x3) Gate Drivers RoHS
Datasheet:
DIODES DGD05473FNQ-7
Products Specifications
Manufacturer:
Package:
DFN-10-EP(3x3)
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
20ns
Propagation Delay tpHL:
23ns
Peak Output Current(Source):
1.5A
Rise Time:
16ns
Peak Output Current(Sink):
2.5A
Features:
Under Voltage Protection
Fall Time:
12ns
Quiescent Current(Iq):
130uA
Load Type:
MOSFET
Input Voltage (Vin):
4.7V~14V
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
