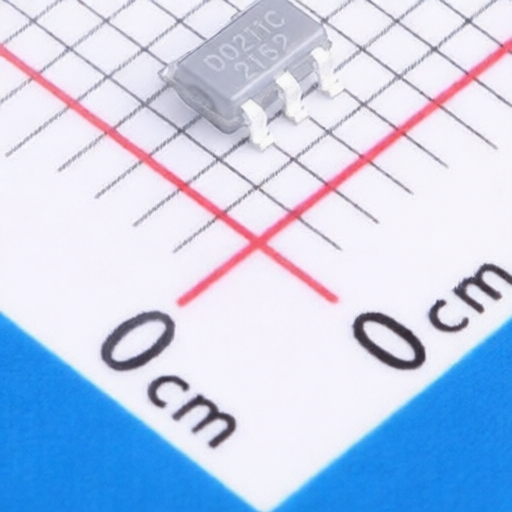

DIODES DGD0211CWT-7
Manufacturer:
DIODES
Mfr. Part #:
DGD0211CWT-7
Package:
TSOT-25
Customer #:
Key Attributes:
IC GATE DRVR LOW SIDE TSOT-25
Description:
Low Side Gate Driver IC MOSFET IGBT TSOT-25
Datasheet:
DIODES DGD0211CWT-7
Products Specifications
Manufacturer:
Package:
TSOT-25
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
35ns
Propagation Delay tpHL:
35ns
Peak Output Current(Source):
1.9A
Rise Time:
15ns
Peak Output Current(Sink):
1.8A
Features:
-
Fall Time:
15ns
Quiescent Current(Iq):
50uA
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
4.5V~18V
Driven Configuration:
Low Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
