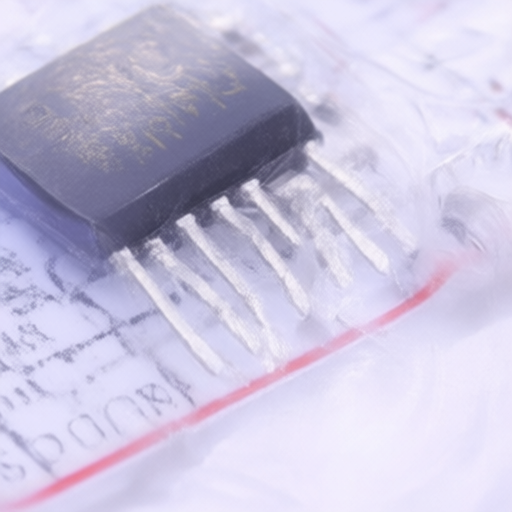

DIODES DMHC3025LSD-13
Manufacturer:
DIODES
Mfr. Part #:
DMHC3025LSD-13
Package:
SO-8
Customer #:
Description:
N-Channel+P-Channel Array 30V 6A 1.5W Surface Mount SO-8
Datasheet:
DIODES DMHC3025LSD-13
Products Specifications
Manufacturer:
Package:
SO-8
Configuration:
Full-Bridge
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
6A
Operating Temperature -:
-55℃~+150℃
RDS(on):
80mΩ@4.5V,3.2A
Gate Threshold Voltage (Vgs(th)):
2V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
122pF
Number:
2 N-Channel + 2 P-Channel
Output Capacitance(Coss):
137pF
Input Capacitance(Ciss):
631pF
Pd - Power Dissipation:
1.5W
Gate Charge(Qg):
11.7nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
