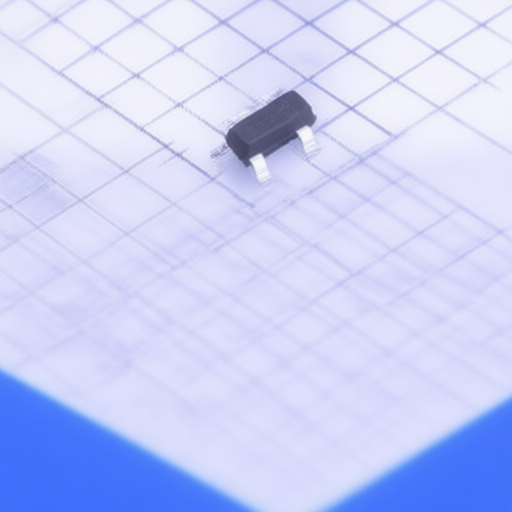

DIODES DMP2305U-7
Manufacturer:
DIODES
Mfr. Part #:
DMP2305U-7
Package:
SOT-23
Customer #:
Description:
P-Channel 20V 4.2A 1.4W Surface Mount SOT-23
Datasheet:
DIODES DMP2305U-7
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
4.2A
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
60mΩ@4.5V,4.2A
Gate Threshold Voltage (Vgs(th)):
900mV
Reverse Transfer Capacitance (Crss@Vds):
64pF
Number:
1 P-Channel
Output Capacitance(Coss):
69pF
Input Capacitance(Ciss):
727pF@20V
Pd - Power Dissipation:
1.4W
Gate Charge(Qg):
7.6nC@4.5V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DIODES
6026 Products
Diodes Incorporated is a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic, analog and mixed-signal semiconductor markets.
