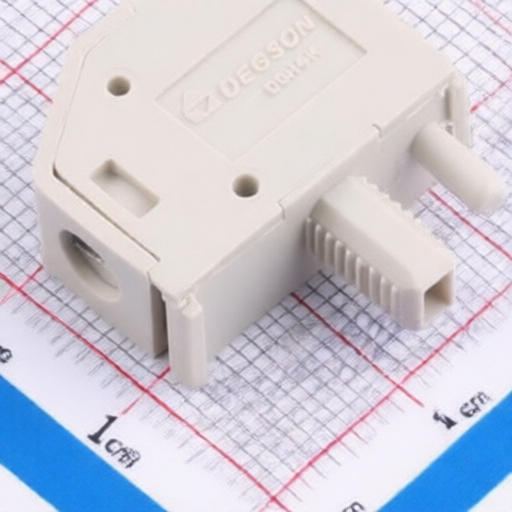

DEGSON DGH4-01P-11-00A(H)
Manufacturer:
DEGSON
Asian Brands
Mfr. Part #:
DGH4-01P-11-00A(H)
Package:
Through Hole
Customer #:
Key Attributes:
TERM BLK 1POS TH
Description:
0.2~6 1x1P 10~30 Gray -40℃~+105℃ 41A 400V Through Hole 8.1mm 1 1 Through Hole Wire to Board RoHS
Datasheet:
DEGSON DGH4-01P-11-00A(H)
Products Specifications
Manufacturer:
Package:
Through Hole
Wire Gauge - mm2:
0.2~6
Number of Positions or Pins:
1x1P
Wire Gauge - AWG:
10~30
Number of Pins:
1P
Color:
Gray
Operating Temperature:
-40℃~+105℃
Current Rating:
41A
Voltage Rating (Max):
400V
Mounting Type:
Through Hole
Pitch:
8.1mm
Number of PINs Per Row:
1
Number of Rows:
1
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEGSON
347 Products
Founded in 1990, DEGSON Electronics Co., Ltd. is one of the largest manufacturers of terminal blocks and industrial electrical connection products in Asia.As a high-tech enterprise, DEGSON owns the first UL and VDE authorized laboratory in Asia.DEGSON products have been approved by UL,VDE,TUV,EXCE,CQC,RoHS,REACH. The company has been granted ISO9001, ISO14001, ISO80079-34, ISO/TS22163 and IATF16949 management system certificates.
