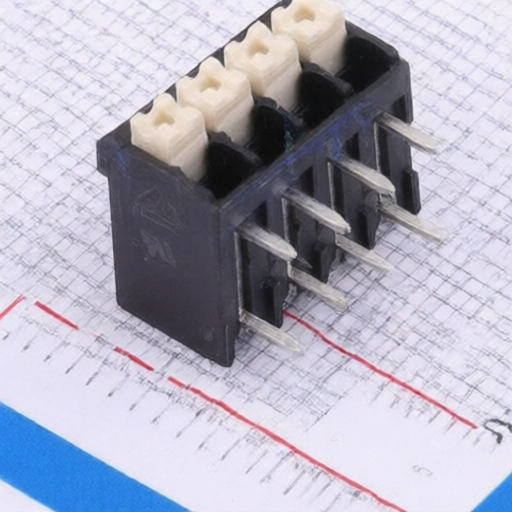

DEGSON DG212R-THR-3.5-04P-13-1000A(H)
Manufacturer:
DEGSON
Asian Brands
Mfr. Part #:
DG212R-THR-3.5-04P-13-1000A(H)
Package:
Through Hole,P=3.5mm
Customer #:
Key Attributes:
TERM BLK 4POS 3.5mm TH
Description:
0.2~1.5 14~28 1x4P 17.5A Black -40℃~+130℃ 200V 3.5mm 4 1 Through Hole,P=3.5mm Wire to Board RoHS
Datasheet:
DEGSON DG212R-THR-3.5-04P-13-1000A(H)
Products Specifications
Manufacturer:
Package:
Through Hole,P=3.5mm
Wire Gauge - mm2:
0.2~1.5
Number of Pins:
4P
Wire Gauge - AWG:
14~28
Number of Positions or Pins:
1x4P
Current Rating:
17.5A
Color:
Black
Operating Temperature:
-40℃~+130℃
Voltage Rating (Max):
200V
Pitch:
3.5mm
Number of PINs Per Row:
4
Number of Rows:
1
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1635 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEGSON
347 Products
Founded in 1990, DEGSON Electronics Co., Ltd. is one of the largest manufacturers of terminal blocks and industrial electrical connection products in Asia.As a high-tech enterprise, DEGSON owns the first UL and VDE authorized laboratory in Asia.DEGSON products have been approved by UL,VDE,TUV,EXCE,CQC,RoHS,REACH. The company has been granted ISO9001, ISO14001, ISO80079-34, ISO/TS22163 and IATF16949 management system certificates.
