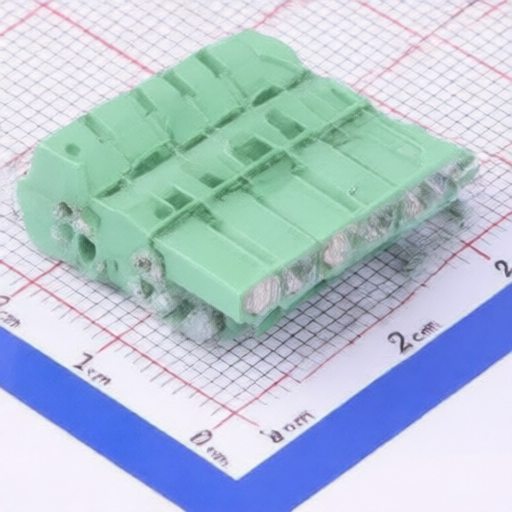

DEGSON 2EDGKDFM-5.08-03P-14-00A(H)
Manufacturer:
DEGSON
Asian Brands
Mfr. Part #:
2EDGKDFM-5.08-03P-14-00A(H)
Package:
P=5.08mm
Customer #:
Description:
0.2~2.5 10A 12~26 Green 300V -40℃~+105℃ 5.08mm Plug 3 1 1x3P Screw P=5.08mm Headers, Plugs and Sockets RoHS
Datasheet:
DEGSON 2EDGKDFM-5.08-03P-14-00A(H)
Products Specifications
Manufacturer:
Package:
P=5.08mm
Wire Gauge - mm2:
0.2~2.5
Current Rating:
10A
Wire Gauge - AWG:
12~26
Color:
Green
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Pitch:
5.08mm
Connector Type:
Plug
Number of PINs Per Row:
3
Number of Rows:
1
Pin Structure:
1x3P
Termination Style:
Screw
Mounting Type:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 520 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
