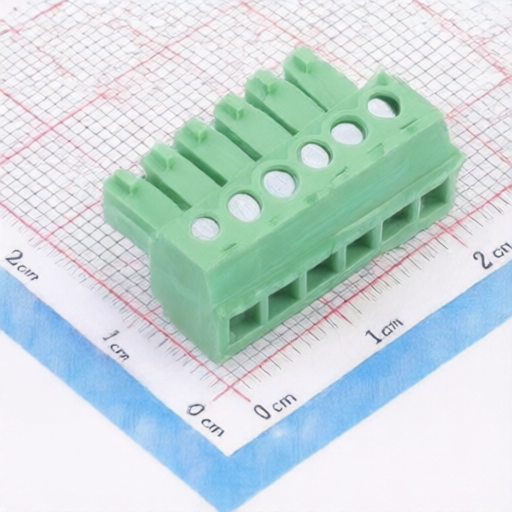

DORABO DB2EK-3.5-6P-GN-S
Manufacturer:
DORABO
Asian Brands
Mfr. Part #:
DB2EK-3.5-6P-GN-S
Package:
P=3.5mm
Customer #:
Key Attributes:
TERM BLOCK PLUG 6POS 3.5mm
Description:
6 Position Plug 3.5mm Pitch
Datasheet:
DORABO DB2EK-3.5-6P-GN-S
Products Specifications
Manufacturer:
Package:
P=3.5mm
Wire Gauge - mm2:
1.5
Number of Pins:
6P
Wire Gauge - AWG:
16~28
Voltage Rating (Max):
320V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
6
Current Rating:
8A
Color:
Green
Outlet Direction (Vertical Basis):
Top Entry
Connection Type:
Screw Connection (M2)
Pitch:
3.5mm
Connector Type:
Male Plug
Number of Rows:
1
Termination Style:
-
Pin Structure:
1x6P
Mounting Type:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
