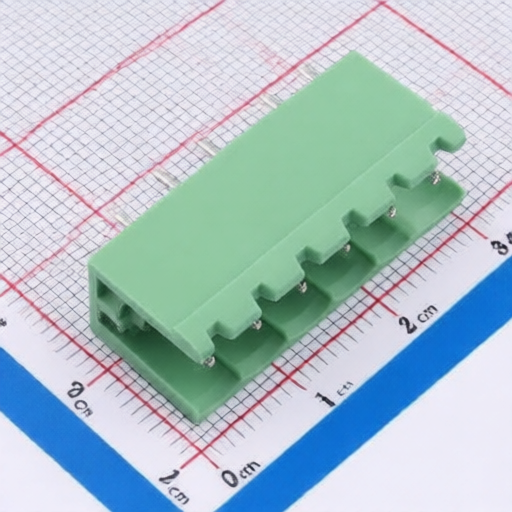

DEGSON 2EDGV-5.0-06P-14-100A(H)
Manufacturer:
DEGSON
Asian Brands
Mfr. Part #:
2EDGV-5.0-06P-14-100A(H)
Package:
Through Hole,P=5mm
Customer #:
Description:
20A Green 320V -40℃~+105℃ 5mm Board Side/Socket - Open 6 1 Hinged (Snap On) Straight Pin 1x6P Through Hole,P=5mm Headers, Plugs and Sockets RoHS
Datasheet:
DEGSON 2EDGV-5.0-06P-14-100A(H)
Products Specifications
Manufacturer:
Package:
Through Hole,P=5mm
Current Rating:
20A
Number of Pins:
6P
Color:
Green
Voltage Rating (Max):
320V
Operating Temperature:
-40℃~+105℃
Pitch:
5mm
Connector Type:
Board Side/Socket - Open
Number of PINs Per Row:
6
Number of Rows:
1
Termination Style:
Hinged (Snap On)
Mounting Type:
Straight Pin
Pin Structure:
1x6P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEGSON
347 Products
Founded in 1990, DEGSON Electronics Co., Ltd. is one of the largest manufacturers of terminal blocks and industrial electrical connection products in Asia.As a high-tech enterprise, DEGSON owns the first UL and VDE authorized laboratory in Asia.DEGSON products have been approved by UL,VDE,TUV,EXCE,CQC,RoHS,REACH. The company has been granted ISO9001, ISO14001, ISO80079-34, ISO/TS22163 and IATF16949 management system certificates.
