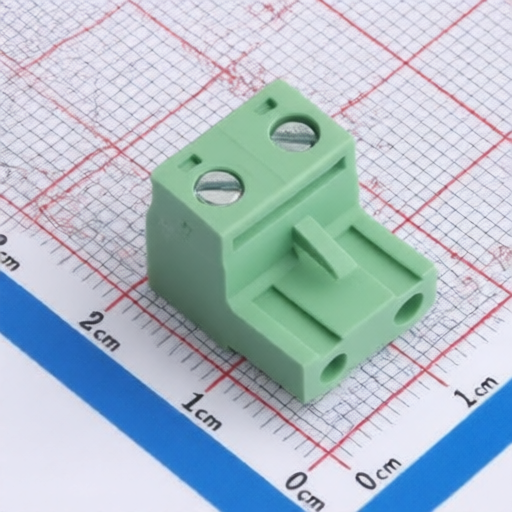

DEGSON 2EDGK-7.62-02P-14-1000A(H)
Manufacturer:
DEGSON
Asian Brands
Mfr. Part #:
2EDGK-7.62-02P-14-1000A(H)
Package:
P=7.62mm
Customer #:
Description:
1~2.5 12~28 400V -40℃~+105℃ 2 20A Green 7.62mm Female Plug 1 Hinged (Snap On) 1x2P P=7.62mm Headers, Plugs and Sockets RoHS
Datasheet:
DEGSON 2EDGK-7.62-02P-14-1000A(H)
Products Specifications
Manufacturer:
Package:
P=7.62mm
Wire Gauge - mm2:
1~2.5
Wire Gauge - AWG:
12~28
Number of Pins:
2P
Voltage Rating (Max):
400V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
2
Current Rating:
20A
Color:
Green
Outlet Direction (Vertical Basis):
Top Entry
Pitch:
7.62mm
Connector Type:
Female Plug
Number of Rows:
1
Termination Style:
Hinged (Snap On)
Pin Structure:
1x2P
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
