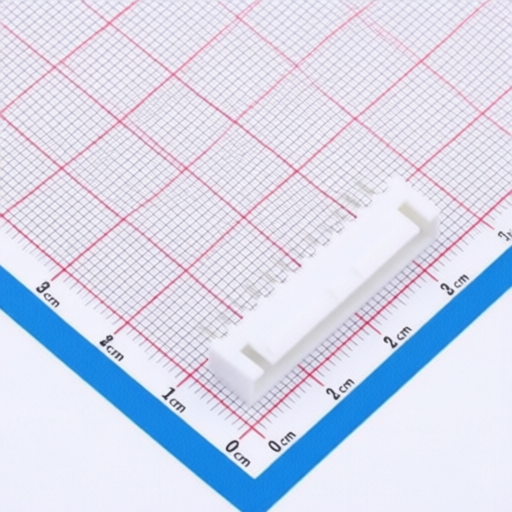

DEALON XHB-D-12A
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
XHB-D-12A
Package:
Through Hole,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH 12POS 2.5mm
Description:
Connector Header 12 position 2.5mm Pitch Through Hole
Datasheet:
DEALON XHB-D-12A
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.5mm
Y-Width of Bottom Edge on Board:
5.8mm
Pins Structure:
1x12P
Pitch:
2.5mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
12
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
32.5mm
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
7mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEALON
2386 Products
DEALON Precision Industry Co., Ltd. specializes in the production and sales of switches, sockets and connectors.
The company is engaged in self-developed products: multi-function switches, tact switches, detection switches, slide switches, illuminated tact switches, key switches, micro switches, earphone sockets, DC sockets, etc.
