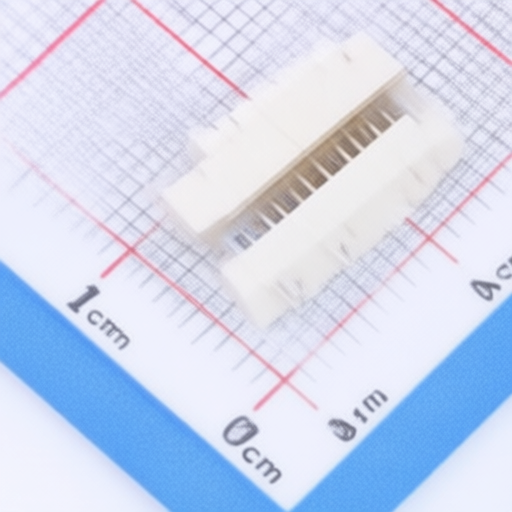

DEALON 1.25-9A

Name: DEALON 1.25-9A
Brand: DEALON

Manufacturer: DEALON Asian Brands

Mfr. Part #: 1.25-9A

Package: Through Hole,P=1.25mm

Customer #:

Key Attributes: CONN HEADER TH 9POS 1.25mm

Description: Connector Header 9 position 1.25mm Pitch Through Hole -25℃~+85℃

Datasheet: DEALON 1.25-9A

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

DEALON

Package:

Through Hole,P=1.25mm

Y-Width of Bottom Edge on Board:

3.3mm

Reference Series:

PicoBlade(MX 1.25)

Pins Structure:

1x9P

Contact Plating:

Contact Material:

-;-

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

Supplementary Features:

Pitch:

1.25mm

Voltage Rating (Max):

50V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

13.15mm

Row Spacing:

Z-Height of the Board:

4.6mm

Mounting Type:

Through Hole

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
