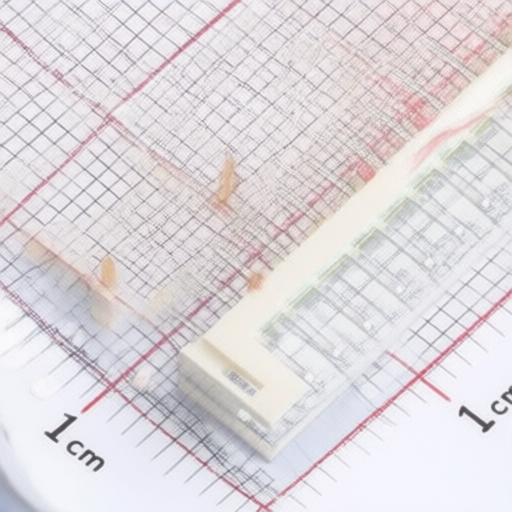

DEALON PH-12A
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
PH-12A
Package:
Through Hole,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH 12POS 2mm
Description:
Connector Header 12 position 2mm Pitch Through Hole -25℃~+85℃
Datasheet:
DEALON PH-12A
Products Specifications
Manufacturer:
Package:
Through Hole,P=2mm
Y-Width of Bottom Edge on Board:
4.75mm
Reference Series:
PH
Pins Structure:
1x12P
Contact Plating:
-
Contact Material:
-;-
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
2mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
12
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
26mm
Row Spacing:
-
Z-Height of the Board:
6mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
