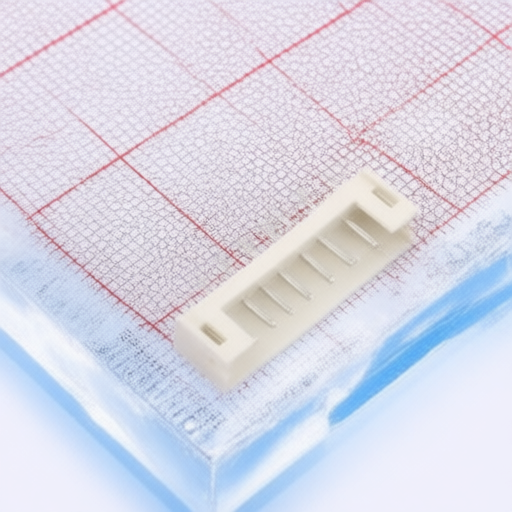

DEALON PH-11A
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
PH-11A
Package:
Through Hole,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH 11POS 2mm
Description:
Connector Header 11 position 2mm Pitch Through Hole -25℃~+85℃
Datasheet:
DEALON PH-11A
Products Specifications
Manufacturer:
Package:
Through Hole,P=2mm
Y-Width of Bottom Edge on Board:
4.75mm
Reference Series:
PH
Pins Structure:
1x11P
Contact Plating:
-
Contact Material:
-;-
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
2mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
11
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
24mm
Row Spacing:
-
Z-Height of the Board:
6mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEALON
2386 Products
DEALON Precision Industry Co., Ltd. specializes in the production and sales of switches, sockets and connectors.
The company is engaged in self-developed products: multi-function switches, tact switches, detection switches, slide switches, illuminated tact switches, key switches, micro switches, earphone sockets, DC sockets, etc.
