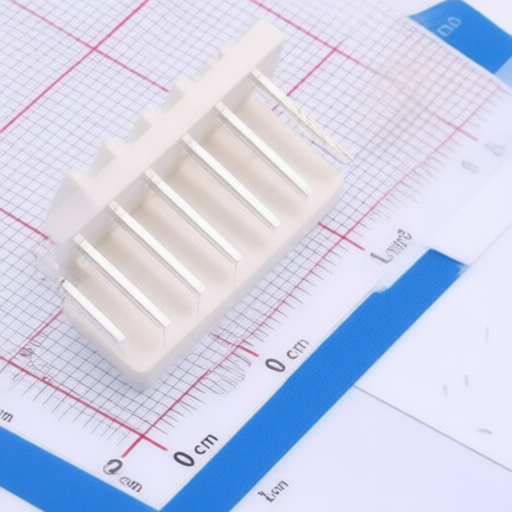

DEALON W2510-9A
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
W2510-9A
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 9POS 2.54mm
Description:
Connector Header 9 position 2.54mm Pitch Right Angle
Datasheet:
DEALON W2510-9A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Y-Width of Bottom Edge on Board:
11.6mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x9P
Contact Material:
PA66
Pitch:
2.54mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
9
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
22.86mm
Z-Height of the Board:
5.8mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DEALON
2386 Products
DEALON Precision Industry Co., Ltd. specializes in the production and sales of switches, sockets and connectors.
The company is engaged in self-developed products: multi-function switches, tact switches, detection switches, slide switches, illuminated tact switches, key switches, micro switches, earphone sockets, DC sockets, etc.
