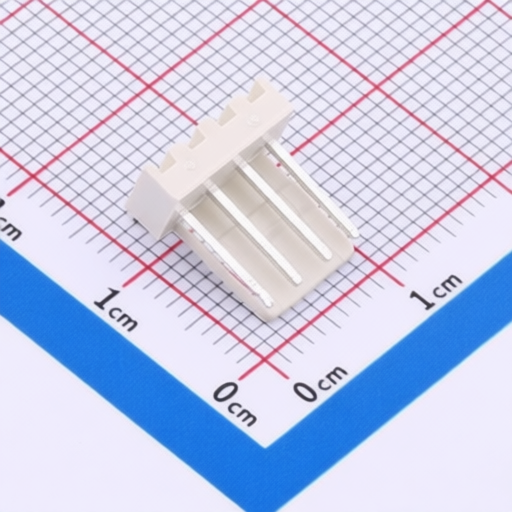

DEALON W2510-4A
Manufacturer:
DEALON
Asian Brands
Mfr. Part #:
W2510-4A
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 4POS 2.54mm
Description:
Connector Header 4 position 2.54mm Pitch Right Angle
Datasheet:
DEALON W2510-4A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Y-Width of Bottom Edge on Board:
11.6mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x4P
Contact Material:
PA66
Pitch:
2.54mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
10.16mm
Z-Height of the Board:
5.8mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
