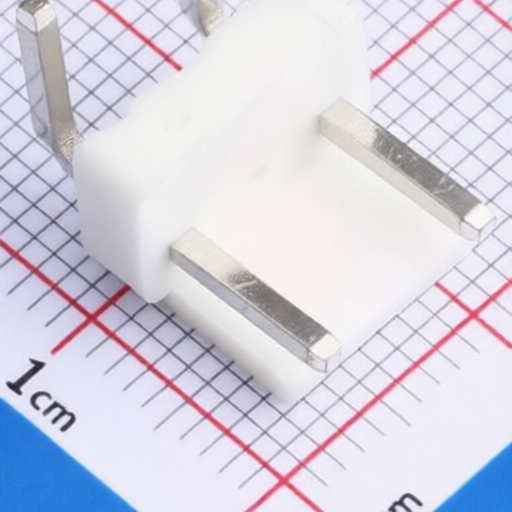

CST CS-1120R-03N2
Manufacturer:
CST
Asian Brands
Mfr. Part #:
CS-1120R-03N2
Package:
Through Hole,Right Angle,P=3.96mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 3POS 3.96mm
Description:
1x3P Tin 3.96mm 250V 3 1 -40℃~+105℃ Right Angle Through Hole,Right Angle,P=3.96mm Headers, Male Pins RoHS
Datasheet:
CST CS-1120R-03N2
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3.96mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x3P
Contact Plating:
Tin
Pitch:
3.96mm
Contact Material:
Brass;PA66
Voltage Rating (Max):
250V
Number of PINs Per Row:
3
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
11.9mm
Operating Temperature:
-40℃~+105℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CST
820 Products
Shenzhen Yongfengying Electronics Co., Ltd. (CST) was established in 2003. The company is located in Bao'an, Zhuan'an, Shenzhen, China. The main production and sales of electronic connector products, as well as mold manufacturing and & nbsp; harness parts processing. The company upholds the business philosophy of honesty, pragmatism, unity, and hard work. It has achieved long-term development in just a few years thanks to strong design and technology research and development capabilities and distribution channels around the world. While the company is growing rapidly, it attaches great importance to the training of its employees, pays more attention to quality control, strictly implements the ISO9001 quality system and the ISO14001 environmental system, and shares social responsibility to provide green, pollution-free products. 2004 began to apply for UL safety certification, In early 2005, the factory passed ISO9001:2004 system certification. Then passed TUV product certification. Wit
