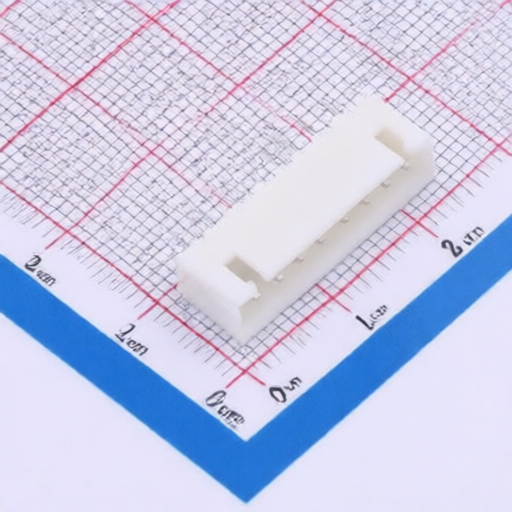

CST CS-1001B-08k
Manufacturer:
CST
Asian Brands
Mfr. Part #:
CS-1001B-08k
Package:
Through Hole,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH 8POS 2.5mm
Description:
1x8P PA66 2.5mm 250V 8 1 -40℃~+105℃ Through Hole Through Hole,P=2.5mm Headers, Male Pins RoHS
Datasheet:
CST CS-1001B-08k
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.5mm
Y-Width of Bottom Edge on Board:
5.8mm
Flame Retardant Rating:
UL94V-2
Pins Structure:
1x8P
Contact Material:
PA66
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
8
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
22.5mm
Operating Temperature:
-40℃~+105℃
Z-Height of the Board:
7mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
