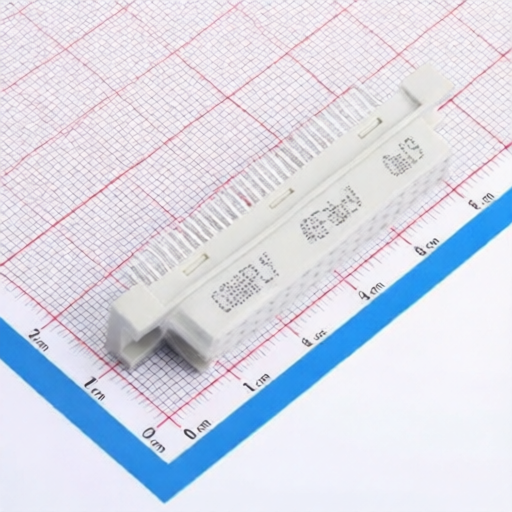

CONNFLY Elec DS1120-48F0V13
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1120-48F0V13
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER TH 48POS
Description:
Connector Header 48 position Through Hole
Datasheet:
CONNFLY Elec DS1120-48F0V13
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Y-Width of Bottom Edge on Board:
8.4mm
Contact Plating:
Gold
Pitch:
2.54mm
Contact Material:
Copper alloy;PBT
Number of PINs Per Row:
16
X-Length of Bottom Edge on Board (Spacing Line):
54.9mm
Z-Height of the Board:
11.3mm
Operating Temperature:
-40℃~+105℃
Row Spacing:
2.54mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 63 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
