CONNFLY Elec DS1022-1x40RUF11-B
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1022-1x40RUF11-B
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Description:

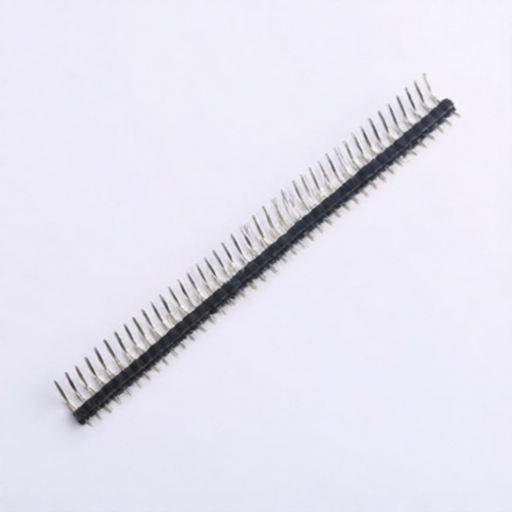

Pin Header 2.54mm Pitch Through Hole, Right Angle
Datasheet:
CONNFLY Elec DS1022-1x40RUF11-B
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Pins Structure:
1x40P
Number of Pins:
40P
Contact Material:
Brass
Pitch:
2.54mm
Insulation Height:
2.5mm
Length of Mating Pin:
3mm
Current Rating-Signal:
3A
Number of Rows:
1
Operating Temperature:
-40℃~+105℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
