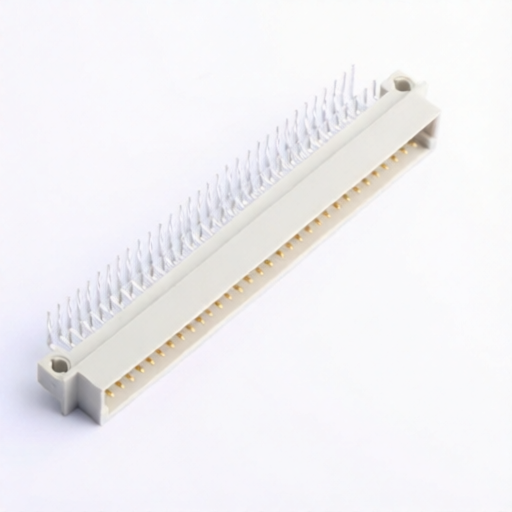

CONNFLY Elec DS1120-96M0R23
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1120-96M0R23
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 64POS
Description:
Connector Header 64 position Right Angle
Datasheet:
CONNFLY Elec DS1120-96M0R23
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Y-Width of Bottom Edge on Board:
18.08mm
Reference Series:
-
Pins Structure:
-
Contact Plating:
Gold
Contact Material:
Copper alloy;PBT
Operating Temperature:
-40℃~+105℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
2.54mm
Voltage Rating (Max):
-
Number of PINs Per Row:
32
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
93.8mm
Row Spacing:
2.54mm
Z-Height of the Board:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 36 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CONNFLY Elec
1183 Products
Connfly Electronic Co., Ltd.
(hereinafter referred to as "Connfly" or "CONNFLY Elec") was founded in 2006, mainly engaged in the R&D, production, and sales of connectors and wire products in various fields. The company has passed ISO9001 quality management system certification, ISO14001 environmental system certification, OHSAS18001 occupational health and safety system certification, and IATF16949 automotive quality management system certification. The products have passed certifications such as CE, FCC, and UL. The company's products include pins, buses, connectors, switches, FPC, FFC, various electronic wires, network sockets, wafers, wiring wires, etc. The products produced by the company meet the requirements of Rohs2.0 and the REACH environmental protection directive. Products are widely used in new energy, 5G networks, automotive electronics, heavy industrial waterproofing equipment, and medical fields.
