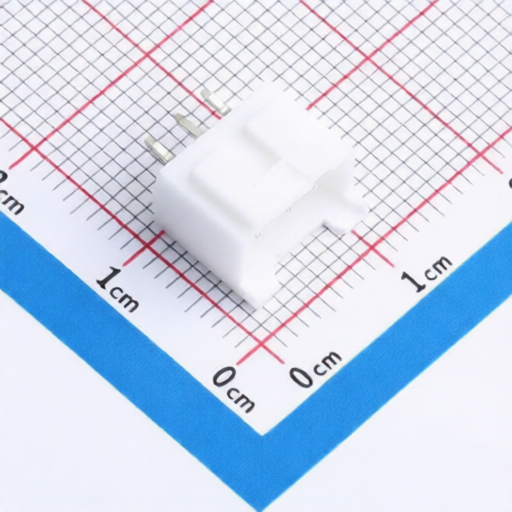

CONNFLY Elec DS1069-05-3MV6WS
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1069-05-3MV6WS
Package:
Through Hole,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH 3POS 2.5mm
Description:
Connector Header 3 position 2.5mm Pitch Through Hole
Datasheet:
CONNFLY Elec DS1069-05-3MV6WS
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.5mm
Y-Width of Bottom Edge on Board:
6.7mm
Reference Series:
XH
Contact Plating:
Tin
Contact Material:
Copper alloy;PA66
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
10mm
Z-Height of the Board:
8.9mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CONNFLY Elec
1183 Products
Connfly Electronic Co., Ltd.
(hereinafter referred to as "Connfly" or "CONNFLY Elec") was founded in 2006, mainly engaged in the R&D, production, and sales of connectors and wire products in various fields. The company has passed ISO9001 quality management system certification, ISO14001 environmental system certification, OHSAS18001 occupational health and safety system certification, and IATF16949 automotive quality management system certification. The products have passed certifications such as CE, FCC, and UL. The company's products include pins, buses, connectors, switches, FPC, FFC, various electronic wires, network sockets, wafers, wiring wires, etc. The products produced by the company meet the requirements of Rohs2.0 and the REACH environmental protection directive. Products are widely used in new energy, 5G networks, automotive electronics, heavy industrial waterproofing equipment, and medical fields.
