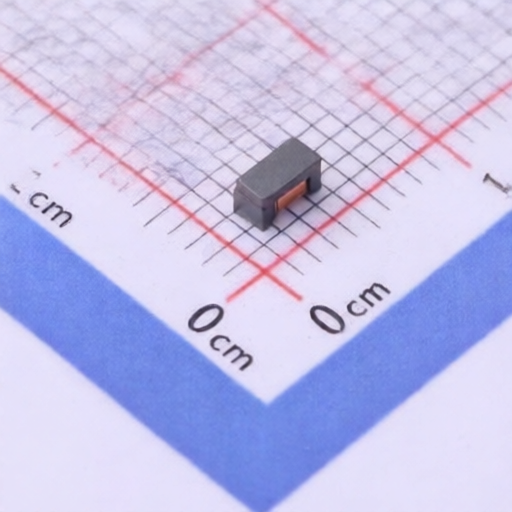

CND-tek CND-DCM321620F2SF-600
Manufacturer:
CND-tek
Asian Brands
Mfr. Part #:
CND-DCM321620F2SF-600
Package:
SMD-4P,3.2x1.6mm
Customer #:
Key Attributes:
CMC 60uH 200mA 2LN SMD
Description:
60uH@100kHz 2Line Common Mode Choke Surface Mount-4P 3.2x1.6mm 200mA DCR 1.7Ω
Datasheet:
CND-tek CND-DCM321620F2SF-600
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,3.2x1.6mm
Inductance @ Frequency:
60uH@100kHz
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
1.7Ω
Voltage Rating - DC:
50V
Number of Lines:
2
Voltage Withstand:
125V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CND-tek
780 Products
Shenzhen Cilianda Electronics Co., Ltd.
(hereinafter referred to as "CND-tek") was established in 2002. It is a technology-driven manufacturing enterprise specializing in the R&D, production, and sale of communication transformers, filters, and inductive components. In 2012, CND-tek expanded by investing in the construction of Henan Cilianda Electronics Co., Ltd., which now serves as the main production base. The company's product portfolio includes network transformers, isolated transformers, wireless charging coil modules, and various connecting wires. With a commitment to honest management, CND-tek strives to provide customers with superior quality and service. The company has developed a robust quality system encompassing every stage of the process, from product development, design, and production, to testing and post-production service. Under its ISO9001:2008 quality management system, CND-tek places a strong emphasis on understanding customer needs and ensuring the efficient impl
