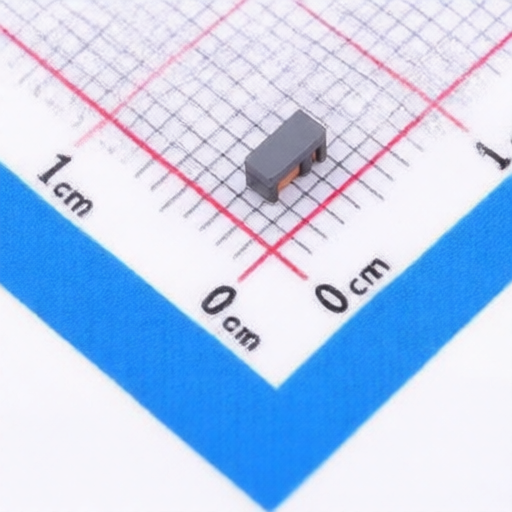

CND-tek CM3216D10-601
Manufacturer:
CND-tek
Asian Brands
Mfr. Part #:
CM3216D10-601
Package:
SMD-6P,3.4x1.6mm
Customer #:
Key Attributes:
CMC 55uH 200mA 4LN 600Ω SMD
Description:
55uH@100kHz 4Line Common Mode Choke Surface Mount-6P 3.4x1.6mm 600Ω@100MHz 200mA DCR 3.2Ω
Datasheet:
CND-tek CM3216D10-601
Products Specifications
Category:
Manufacturer:
Package:
SMD-6P,3.4x1.6mm
Inductance @ Frequency:
55uH@100kHz
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+85℃
DC Resistance(DCR):
3.2Ω
Voltage Rating - DC:
50V
Number of Lines:
4
Voltage Withstand:
125V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 7000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
