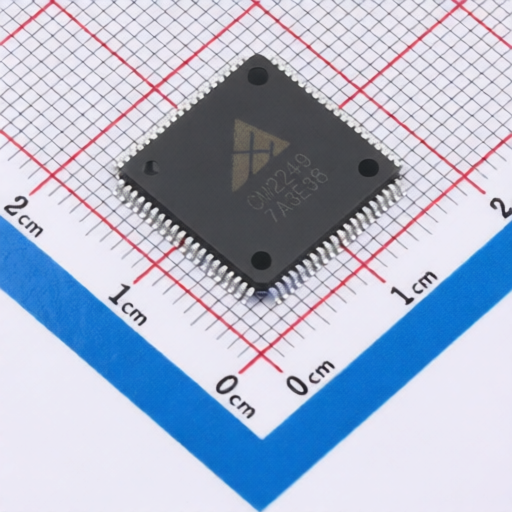

CIMO CM2249-QFPTR

Name: CIMO CM2249-QFPTR
Brand: CIMO

Manufacturer: CIMO Asian Brands

Mfr. Part #: CM2249-QFPTR

Package: LQFP-80(14x14)

Customer #:

Key Attributes: 16-channel Data Acquisition System (DAS) with built-in 16-bit, bipolar input, simultaneous sampling ADC

Description: 16 Bit Analog to Digital Converter 16 Input SAR LQFP-80(14x14)

Datasheet: CIMO CM2249-QFPTR

Products Specifications

Category:

Integrated Circuits (ICs)/Data Acquisition/Analog to Digital Converters (ADC)

Manufacturer:

CIMO

Package:

LQFP-80(14x14)

Voltage Reference Drift:

15ppm/℃

Temperature Range:

-40℃~+125℃

Voltage Reference:

Built-in;External

Interface:

SPI

Quiescent Current (Iq):

35mA

Resolution(Bits):

S/N Ratio:

91.5dB

Voltage - Supply:

4.75V~5.25V

Sampling Rate:

1MHz

Number of Channels:

ADC architecture:

SAR

Integral non - linearity:

0.8LSB

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	90
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8542399000
USHTS	8542390001
TARIC	8542399000
CAHTS	8542390000
BRHTS	85423999
INHTS	85423900
MXHTS	8542.39.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

CIMO

55 Products

Asian Brand

CIMO is dedicated to the design and sales of high-performance analog signal chain chips, with a focus on high-performance ADC/DAC chips as its core technology. The main product lines include high-performance ADC/DACs, amplifiers, and reference sources.
