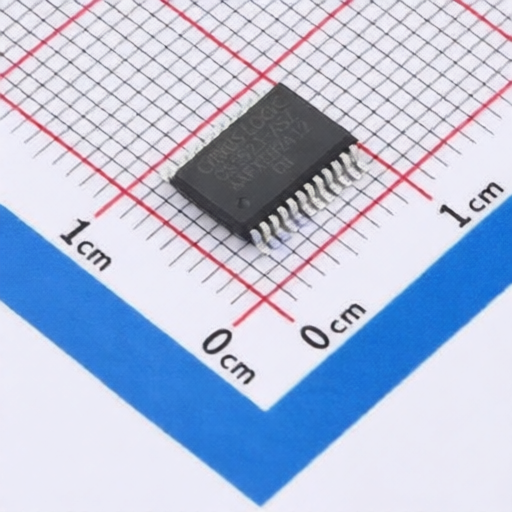

Cirrus Logic CS5523-ASZR
Manufacturer:
Cirrus Logic
Mfr. Part #:
CS5523-ASZR
Package:
SSOP-24
Customer #:
Key Attributes:
16/24-bit, 2/4/8-channel ADCs with PGA
Description:
Serial 3V~5V -40℃~+85℃ SSOP-24 Analog to Digital Converters (ADC) RoHS
Datasheet:
Cirrus Logic CS5523-ASZR
Products Specifications
Manufacturer:
Package:
SSOP-24
Interface:
Serial
Quiescent Current (Iq):
110uA
Full-Scale Range(FSR):
25mV;55mV;100mV;1V;2.5V;5V
Voltage - Supply:
3V~5V
Sampling Rate:
617Hz
Number of Channels:
4
Temperature Range:
-40℃~+85℃
Data Rate:
1.88Hz;3.76Hz;7.51Hz;15Hz;30Hz;61.6Hz;84.5Hz;101.1Hz;617Hz
Clock/Oscillator:
Built-in;External
Clock Frequency:
32.768kHz;30kHz~130kHz
Resolution(Bits):
16
ADC architecture:
Sigma-Delta
Programmable Gain:
Support
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Cirrus Logic
1065 Products
Cirrus Logic is a premier supplier of high-precision analog and digital signal processing components for audio and energy markets. They are a recognized leader in analog and mixed-signal audio converter technologies and audio processors that enable today's new consumer, professional and automotive entertainment products. Cirrus Logic also invests heavily in innovative new products designed to meet global demands for smarter, more efficient energy consumption. They excel at developing complex chip designs where feature integration and innovation is a premium. Founded in 1984 in Silicon Valley, Cirrus Logic has more than 1,000 patents that are key to more than 700 of their products serving more than 2,500 end customers globally, through both direct and distributor-based channel sales.
Cirrus Logic acquired Wolfson Microelectronics, creating the industry leader in world-class audio solutions.
