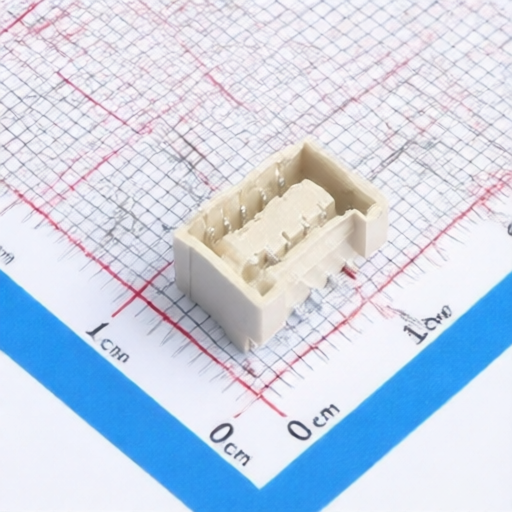

chxunda XD-ZHD-2*5PLT
Manufacturer:
chxunda
Asian Brands
Mfr. Part #:
XD-ZHD-2*5PLT
Package:
SMD,P=1.5mm
Customer #:
Description:
2x5P LCP 1.5mm 100V 5 2 Surface Mount, Right Angle -25℃~+85℃ SMD,P=1.5mm Headers, Male Pins RoHS
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
8.4mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x5P
Contact Material:
LCP
Pitch:
1.5mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
5
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
11.2mm
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
5.7mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
chxunda
1056 Products
CHXUNDA, established in Bao'an District, Shenzhen, is an integrated medium and small-sized enterprise focusing on R&D, manufacturing, and sales. The company primarily produces a series of products including connectors, switches, and sockets.
