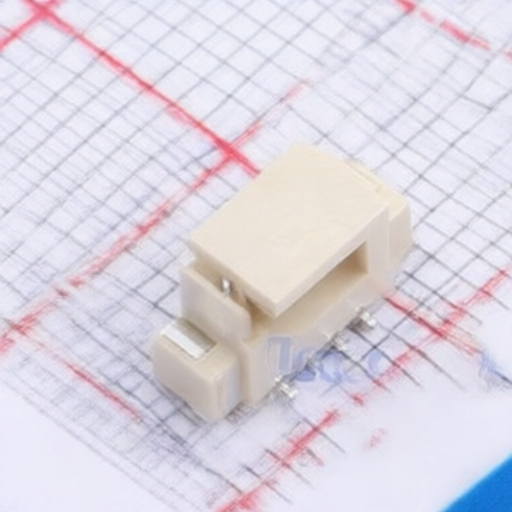

chxunda XD-1.25-4PLT
Manufacturer:
chxunda
Asian Brands
Mfr. Part #:
XD-1.25-4PLT
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD 4POS 1.25mm
Description:
Connector Header 4 position 1.25mm Pitch 1A Surface Mount,Vertical -40℃~+105℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
4.2mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x4P
Contact Material:
LCP
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
9.8mm
Z-Height of the Board:
4.75mm
Operating Temperature:
-40℃~+105℃
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
