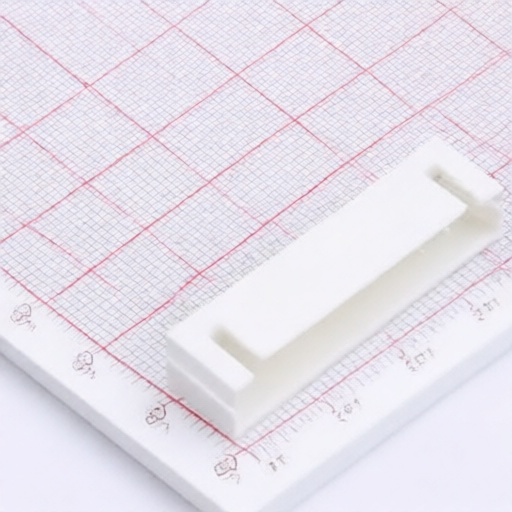

chxunda XD-XHD-2*14A
Manufacturer:
chxunda
Asian Brands
Mfr. Part #:
XD-XHD-2*14A
Package:
Through Hole,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH 28POS 2.5mm
Description:
Connector Header 28 position 2.5mm Pitch 3A Through Hole -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.5mm
Y-Width of Bottom Edge on Board:
8.6mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x14P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
14
Number of Rows:
2
Z-Height of the Board:
9.5mm
Row Spacing:
-
Operating Temperature:
-25℃~+85℃
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
