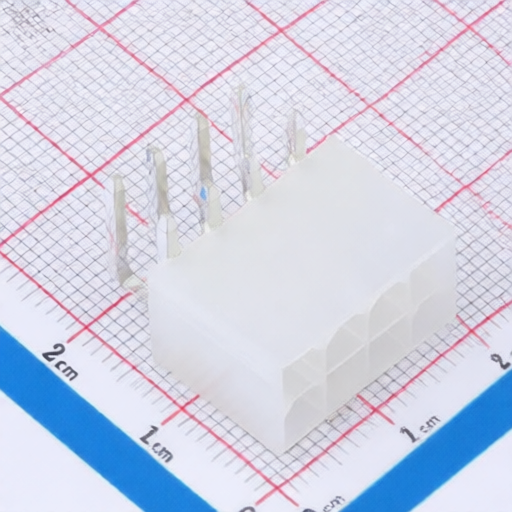

chxunda XD-5557-2*4AW
Manufacturer:
chxunda
Asian Brands
Mfr. Part #:
XD-5557-2*4AW
Package:
Through Hole,Right Angle,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 8POS 4.2mm
Description:
Connector Header 8 position 4.2mm Pitch Right Angle
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=4.2mm
Y-Width of Bottom Edge on Board:
18.6mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x4P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Pitch:
4.2mm
Voltage Rating (Max):
300V
Number of PINs Per Row:
4
Number of Rows:
2
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
10mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
chxunda
1056 Products
CHXUNDA, established in Bao'an District, Shenzhen, is an integrated medium and small-sized enterprise focusing on R&D, manufacturing, and sales. The company primarily produces a series of products including connectors, switches, and sockets.
