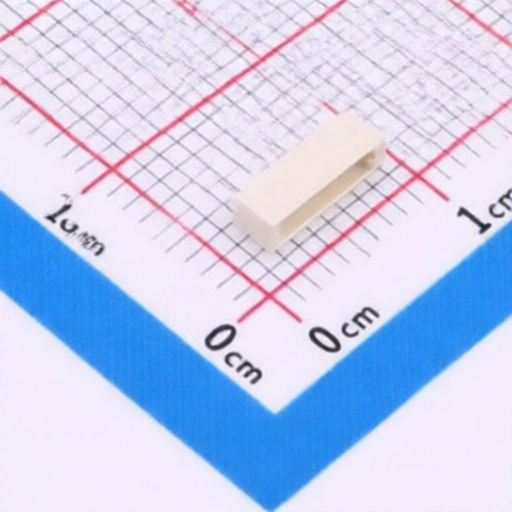

chxunda XD-0.8-7PWT
Manufacturer:
chxunda
Asian Brands
Mfr. Part #:
XD-0.8-7PWT
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 7POS 0.8mm
Description:
Connector Header 7 position 0.8mm Pitch 500mA Surface Mount, Right Angle -40℃~+105℃
Products Specifications
Manufacturer:
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
2.8mm
Reference Series:
-
Pins Structure:
1x7P
Contact Plating:
-
Contact Material:
-;LCP
Operating Temperature:
-40℃~+105℃
Flame Retardant Rating:
UL94V-0
Pitch:
0.8mm
Voltage Rating (Max):
30V
Number of PINs Per Row:
7
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
7.8mm
Z-Height of the Board:
1.85mm
Row Spacing:
-
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
